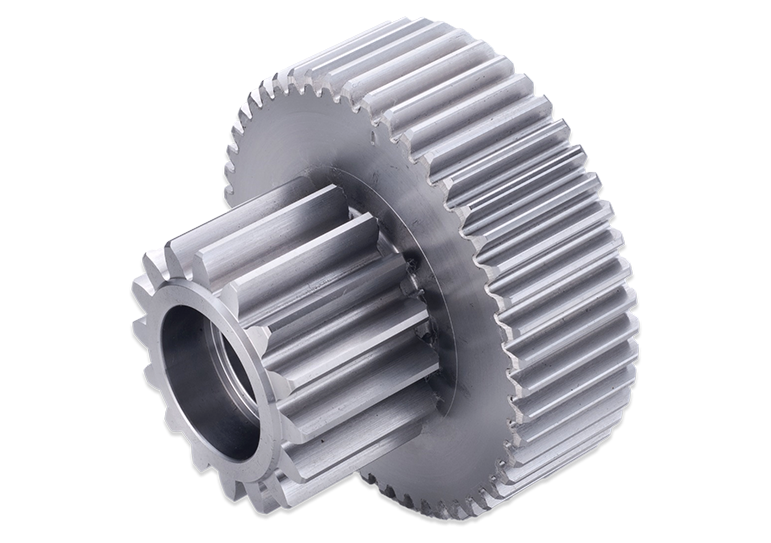

Spur gear
The spur gear features teeth that are straight and parallel to the axis of the gear, allowing for efficient power transmission with constant speed ratios. This simple design makes it suitable for applications requiring reliable and precise motion control. Spur gears are commonly found in various mechanical systems such as clocks, washing machines, conveyor belts, and gear pumps.
Due to their ability to transmit motion smoothly and accurately, spur gears are also widely used in applications like automotive transmissions, robotics, and manufacturing equipment where precise speed control is essential. The straightforward design and ease of manufacturing of spur gears make them a popular choice in machinery and equipment across different industries.
Features of Spur Gears
Spur gears are the most common type of gears. The gear teeth are arranged on the outside circumference, with a straight tooth profile. Each tooth face is parallel to the axis of rotation of the gear, allowing spur gears to transmit power effectively on parallel axes. The transmission principle of spur gears is based on the mechanical meshing between two gears, and their tooth profile design ensures smooth motion at the contact point, enabling effective power transmission. By configuring gears of different sizes, the speed and torque can be changed to achieve the desired transmission ratio.
Simplicity
The design of spur gears is relatively simple, making them easy to manufacture and install; they are commonly found in various mechanical devices.
High Efficiency
The meshing efficiency of spur gears typically reaches over 95%, making them suitable for transmission systems that require high efficiency.
Precision
Because the meshing of spur gears entails point-to-point contact, they can achieve very high motion precision, which gives them an advantage in precision machinery.
Load Capacity
Spur gears can withstand higher rated loads, making them suitable for heavy-duty applications, and due to their regular tooth shape, they offer good wear resistance.
Transmission Ratio
The transmission ratio can be flexibly adjusted by selecting gears of different sizes to meet various application requirements.
Specific Application Cases
With their simple and efficient structure, excellent load capacity, and motion precision, spur gears are widely adopted in various industrial applications.
From automobile transmissions to precision machinery, spur gears play a critical role in transmission systems, and with the advancement of technology,
the design and materials of spur gears continue to improve, leading to broad future application possibilities.
Automotive Motorcycle
The application of gears in automobiles and motorcycles primarily focuses on transmission systems and power delivery...
Reducers
Reducers are devices used to convert high-speed rotation into low-speed, high-torque output, with gears playing a central role...
Pumps
Pumps are devices used to move liquids, and gears play a crucial role in their operation...
Agricultural Machinery
Gears play an indispensable role in agricultural machinery, commonly found in tractors, seeders, and combine harvesters...
