Worm gear

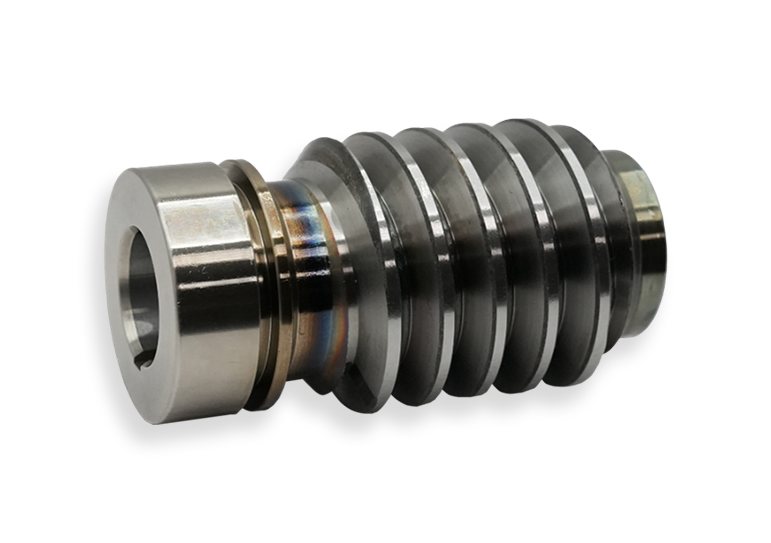

A worm gear is a special type of gear transmission device composed of a worm and a worm wheel. The worm is a cylindrical body with helical teeth, while the worm wheel is a disk shaped gear with corresponding tooth profiles.
Features of Worm Gear
They mesh together, converting the rotational motion of the worm into the rotational motion of the worm wheel. When the worm rotates, its helical teeth contact the tooth surface of the worm wheel, driving the worm wheel through the rotational motion of the worm, thereby outputting power. The helical shape of the worm and the design of the worm wheel ensure stable power transmission.
High Reduction Ratio
The reduction ratio of worm drives is usually high, effectively reducing the output speed while increasing torque, making it suitable for applications that require increased torque and reduced speed.
Self-Locking Property
Worm drives have a self-locking feature, which means that the worm wheel will not automatically drive the worm when there is no external movement, providing safety and stability in certain applications.
Compact Design
The structure of the worm and worm wheel is compact, allowing integration in limited space, suitable for applications with spatial constraints.
Smooth Operation
The contact between the worm and the worm wheel is smooth, resulting in relatively quiet and stable operation, suitable for environments sensitive to noise and vibration.
Easy Maintenance
The maintenance of worm drive systems is relatively simple, with less wear and tear, typically resulting in a longer lifespan.
Specific Application Cases
Worm gears play an important role in various industrial and everyday applications due to their unique structure and operational characteristics.
With their high reduction ratio, self-locking property, and smooth operation, they excel in stable and efficient power transmission systems.
