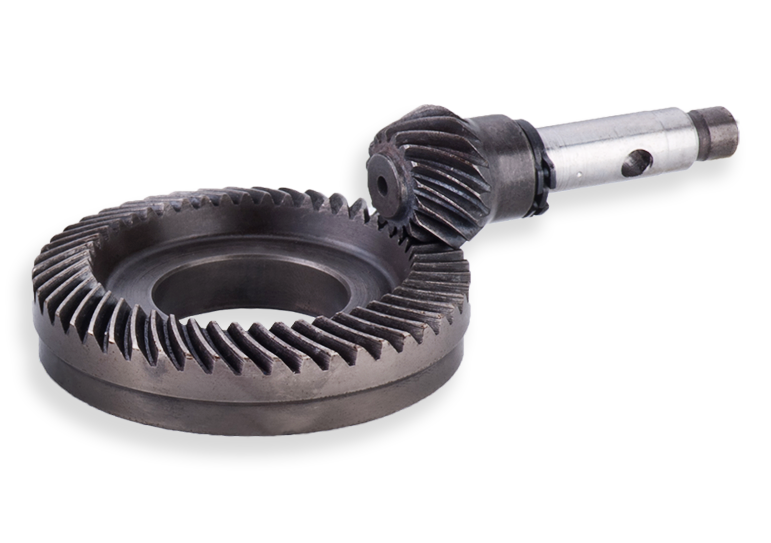

Spiral bevel gear
Spiral bevel gears are a special type of bevel gear with helical tooth surfaces. This structure allows for smoother transmission during the meshing process and is typically used to transmit power between two non-parallel or intersecting axes.
Features of Spiral Bevel Gears
The operation of spiral bevel gears relies on their helical tooth design, which facilitates smoother contact during meshing and reduces friction and wear. When one bevel gear is activated at an inclined plane, its helical teeth gradually engage with those of the connected gear, achieving a smooth transfer of power.
Stability
Compared to traditional crossed bevel gears, spiral bevel gears can provide a smoother and quieter operation due to the load-dispersing nature of their helical teeth.
High Load Capacity
The larger contact area of spiral bevel gears allows them to withstand higher loads, making them suitable for use in heavy equipment.
Increased Efficiency
Spiral bevel gears have high meshing efficiency, and their design reduces friction losses, ensuring optimal transmission performance, especially when combined with other gears in a transmission system.
Wear Resistance
The increased contact area decreases wear during operation, extending the lifespan of spiral bevel gears.
Ability to Change Direction
Spiral bevel gears can effectively change the direction of motion between different axes, making them particularly suitable for mechanical systems requiring complex motion conversion.
Specific Application Cases
Spiral bevel gears play an important role in mechanical transmission systems, excelling in various applications due to their high efficiency, smooth operation, and load-bearing capabilities.
Automotive Motorcycle
The application of gears in automobiles and motorcycles primarily focuses on transmission systems and power delivery...
Reducers
Reducers are devices used to convert high-speed rotation into low-speed, high-torque output, with gears playing a central role...
Gearboxes
Gearboxes are mechanical devices used to alter output speed and torque, playing a critical role in various applications...
Automation Industry
Gears are extensively applied in the automation industry, serving as core components for mechanical motion and power transmission...
