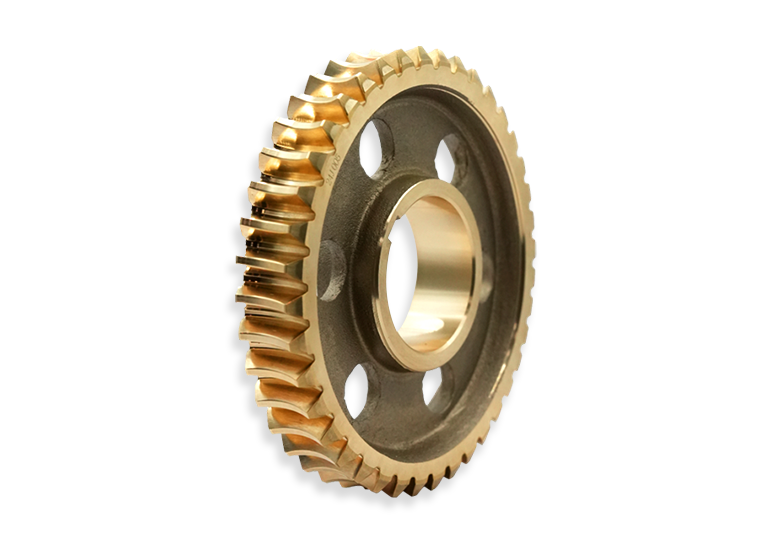

Worm wheel
A worm wheel is a gear that is used in conjunction with a worm gear. It typically has a disc shape, with a helical tooth profile that meshes with the helical teeth of the worm. The tooth design of the worm wheel allows it to efficiently transmit power and is driven by the rotation of the worm.
Features of the Worm Wheel
The operation of the worm wheel relies on the rotation of the worm; when the worm turns, its helical teeth contact the tooth surface of the worm wheel and generate a torque that enables the worm wheel to rotate, thereby changing the output speed and torque.
High Reduction Ratio
The worm wheel can achieve a high reduction ratio, making it particularly suitable for applications that require reducing speed while increasing torque.
Self-Locking Property
The combination of the worm and worm wheel typically possesses a self-locking feature, meaning that the worm wheel will not rotate on its own in the absence of external force, which is especially important for preventing backsliding.
Compactness
The configuration of the worm wheel and worm is usually more compact than other types of gear systems, making them suitable for applications with spatial constraints.
Smooth Operation
The worm wheel provides smooth power transmission, and compared to other gear systems, it operates with relatively low noise and vibration.
Ease of Manufacturing and Maintenance
Worm wheels can be made from a variety of materials, such as steel, aluminum, or plastic, and maintenance is relatively simple.
Specific Application Cases
As an important mechanical component, the worm wheel plays a vital role in various industrial and engineering applications due to its unique self-locking feature, high reduction ratio, and compactness.
From power tools to robotic technology, worm wheels provide stable and reliable performance.
